خيمة ثلاثية الطوابق

  1. تفاصيل عامة

    Multi-level Tent Structures

    تُعد الخيمة ذات الطوابق الثلاثة إنجازًا جديدًا في صناعة المباني المعيارية والمتنقلة، وهو إنجاز آخر يأتي في أعقاب النظام المعياري للخيمة ذات الطابقين.

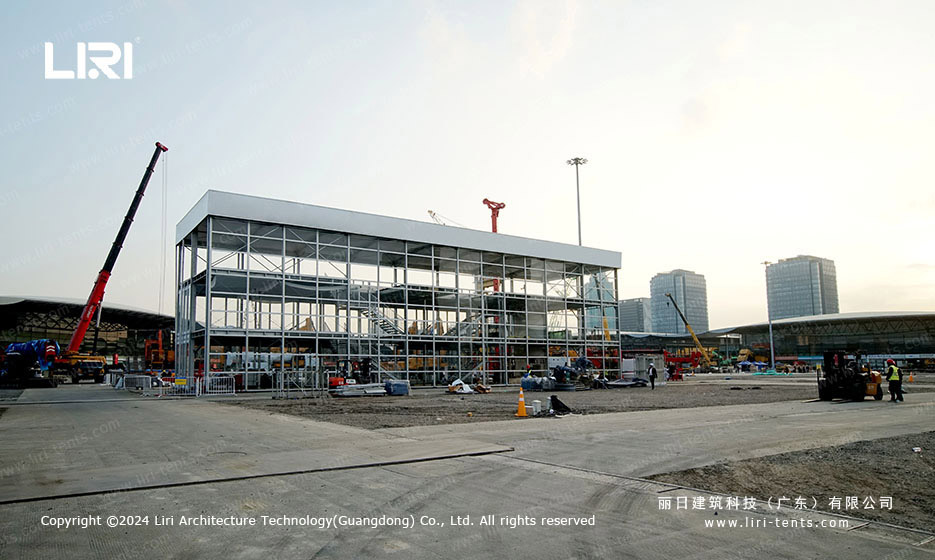

    Triple decker tent is made of a high-strength aluminum alloy as the framework. Cassette wooden floor aluminum edged with alloy frame composite. Two optional height include 3.3m and 4m for each floor, internal height up to 12m.

    All three floor is the modular structure. 5m per section, clear span width from 3m to 80m. We offer you an unimaginable space solution. More flexible, you can remove the first and second frame and floor and used as single-story tents or double floor tents. Quickly installation, zero residual material after dismantle, 100% reuse, green.

    You can customize the three-story tent according to different demands, divided into the different functional area. Decorated with different accessories, like solid walls, floors, mantle trim, internal or outer stairs, etc. You can equip the three-story tent with a balcony to provide outdoor extra space, to achieve a broader view.

  2. Product Specification
    عرض الامتدادHeight of first floorHeight of second floorHeight of third floorارتفاع الحافةTop Heightالملف الشخصي الرئيسي
    15 مترًا3.35m3.35m3.3m10 أمتار12.5m300 × 120 × 5 مم (4 قنوات)
    15 مترًا4 أمتار4 أمتار3.8m11.8m14.3m300 × 120 × 5 مم (4 قنوات)
    20 مترًا3.35m3.35m3.3m10 أمتار13.3m300 × 120 × 5 مم (4 قنوات)
    20 مترًا4 أمتار4 أمتار3.8m11.8m15.1m300 × 120 × 5 مم (4 قنوات)
    25 مترًا3.35m3.35m3.3m10 أمتار14.1m350x120x5mm (4 - channel)
    25 مترًا4 أمتار4 أمتار3.8m11.8m16 م350x120x5mm (4 - channel)
    30 مترًا3.35m3.35m3.3m10 أمتار14.9m350x120x5mm (4 - channel)
    30 مترًا4 أمتار4 أمتار3.8m11.8m16.4m350x120x5mm (4 - channel)
  3. 3D Drawing
