Hexagon Tent
- تفاصيل عامة
The Hexagon Tent features two kinds of roof shapes, diamond and high peak, and features structures with eave heights of 2.6m and 3m. There are NPT-HEX profiles PT-HEX-HP (82x48x3mm), NPT-HEX-HP (100x48x3mm), WT-HEX-HP (122x68x3mm) and GT-HEX-HP (166x88x3mm). The hexagon tent frame uses hard pressed extruded aluminum alloy 6061/T6. The roof cover uses PVC coated polyester textile which is 850 g/sm in a blackout or translucent materials.
Installation and dismantles is easy in the process and short in time. It can be worked either as a temporary structure or a permanent building.
The hexagon tent can include: PVC plastic side windows, glass windows, glass doors, ground anchors, weight plates, wooden floors, lining curtain, etc.
- Product Specification
عرض الامتداد ارتفاع الحافة ارتفاع الحافة Side Length الملف الشخصي الرئيسي 6 أمتار 2.6m 3.71m 3m 100x48x3mm (4 - channel) 8m 2.6m 4.18m 4 أمتار 100x48x3mm (4 - channel) 9m 2.6m 4.24m 4.5m 100x48x3mm (4 - channel) 10 أمتار 2.6m 4.4m 5 أمتار 122x68x3mm (4 - channel) 12 مترًا 2.6m 4.78m 6 أمتار 122x68x3mm (4 - channel) - 3D Drawing
- Technical Data

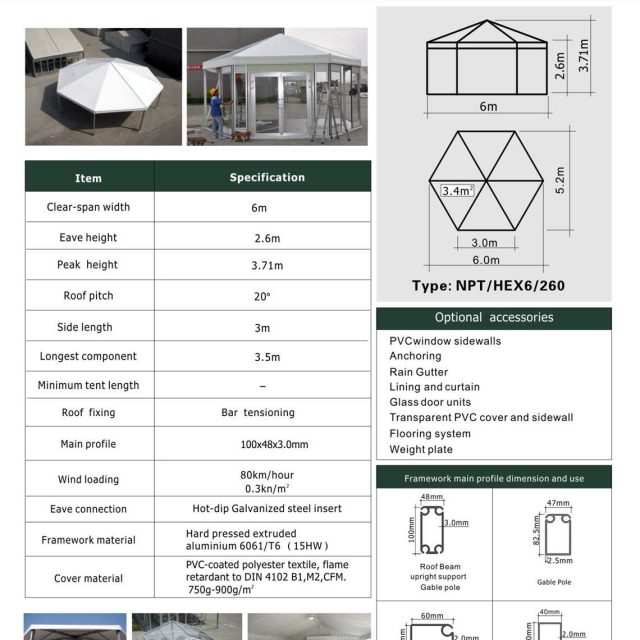

6m Span Hexagon Tent

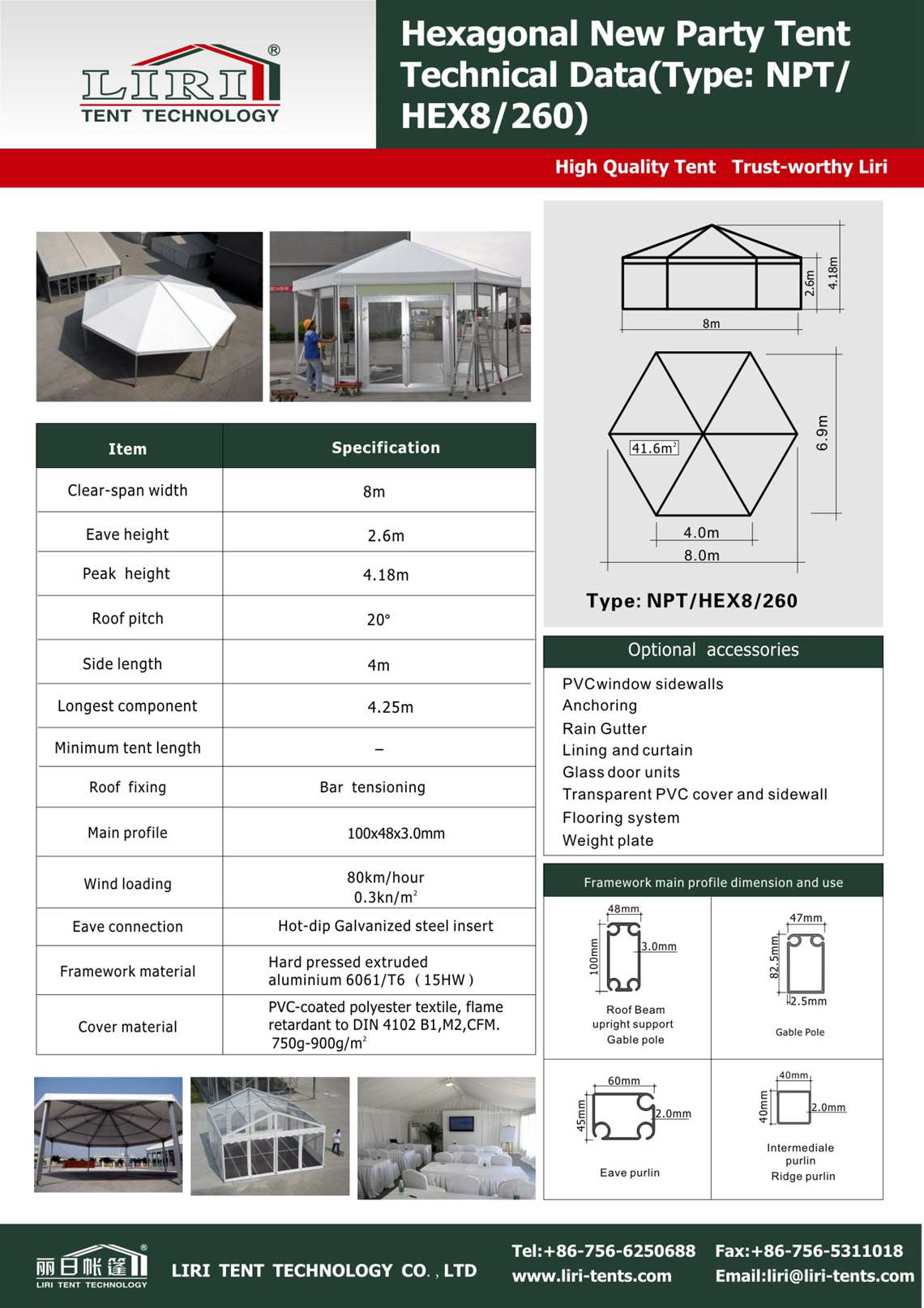

8m Span Hexagon Tent

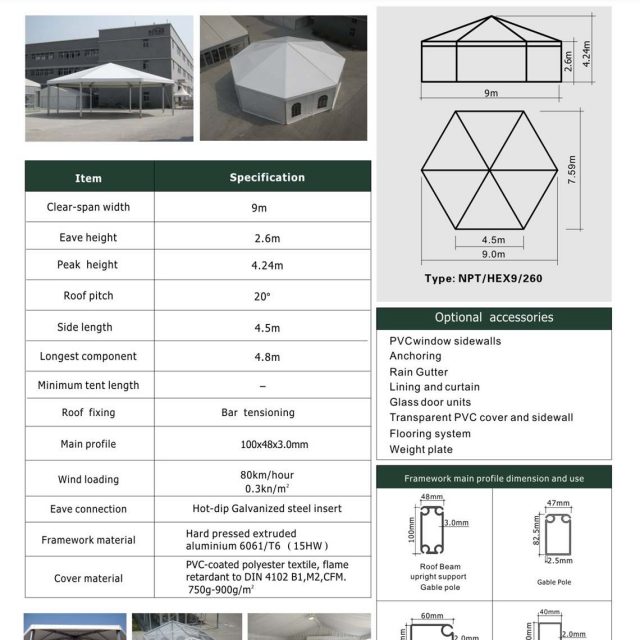

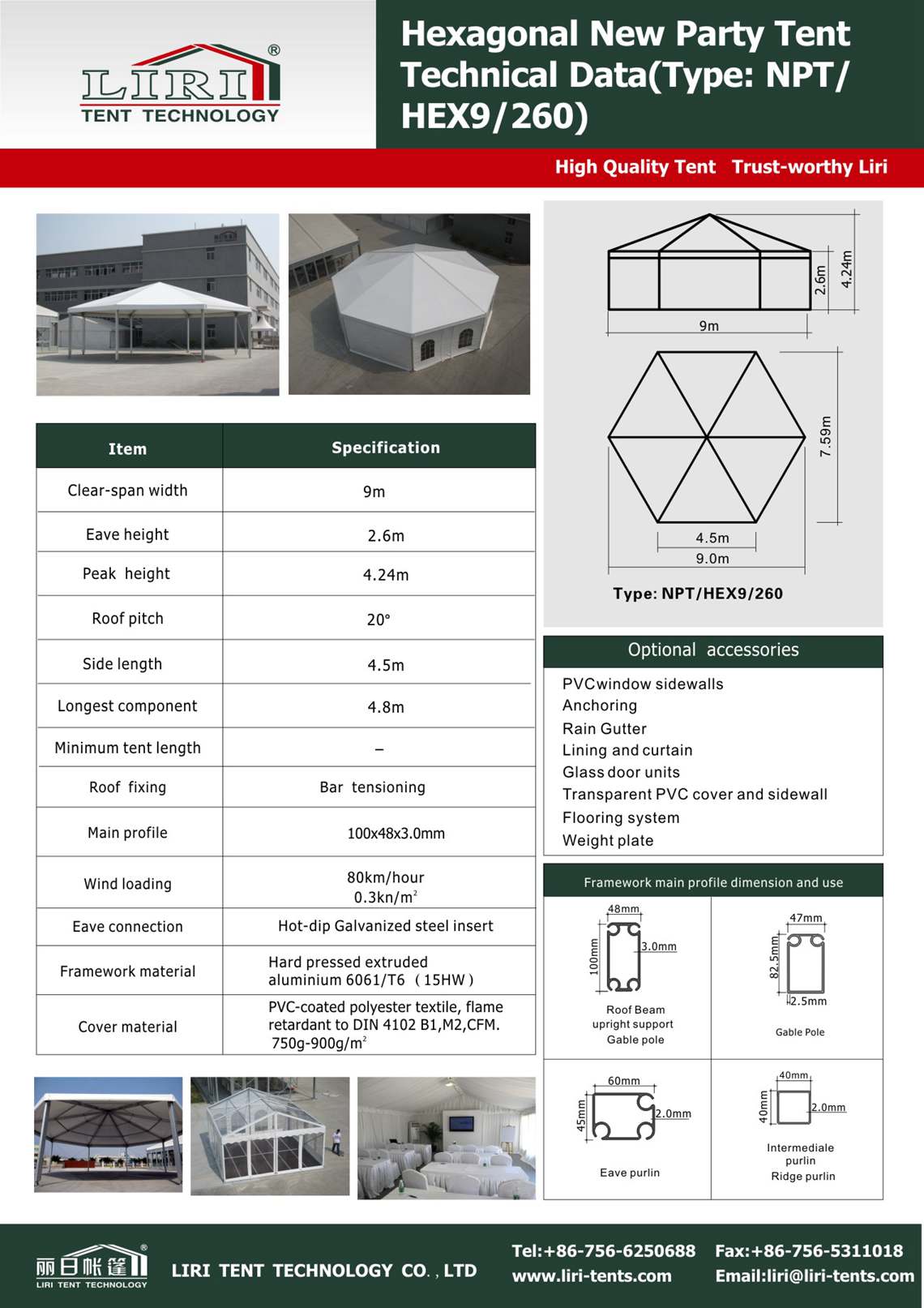

9m Span Hexagon Tent

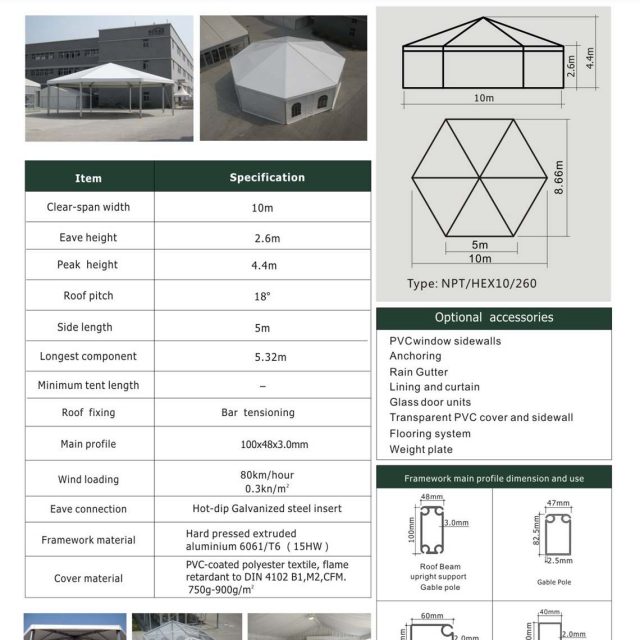

10m Span Hexagon Tent

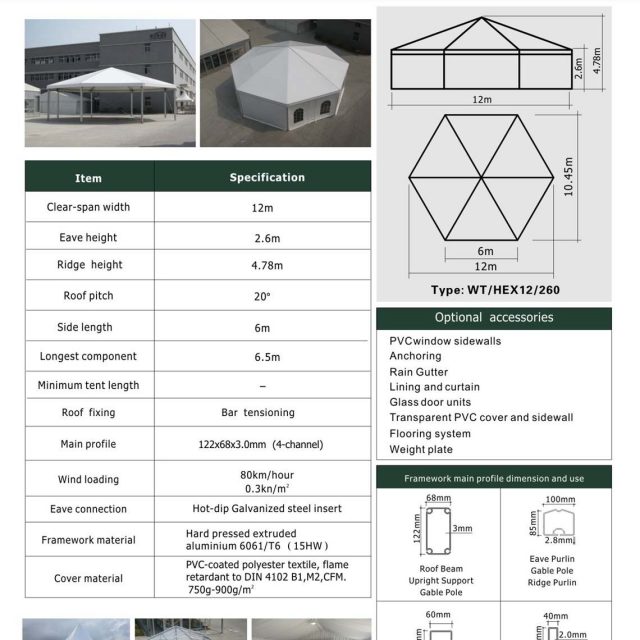

12m Span Hexagon Tent
