خيمة قبة جيوديسية لألعاب الروبوتات البشرية العالمية

The 2025 World Humanoid Robot Games

نبذة عن المشروع

The 2025 World Humanoid Robot Games, an international technology event, fully demonstrated the powerful force of cutting-edge robotics development. To back up such a globally anticipated robotics competition, Liri Architecture Technology (Guangdong) Co., Ltd. provided not only a solid foundation but also a unique charm.

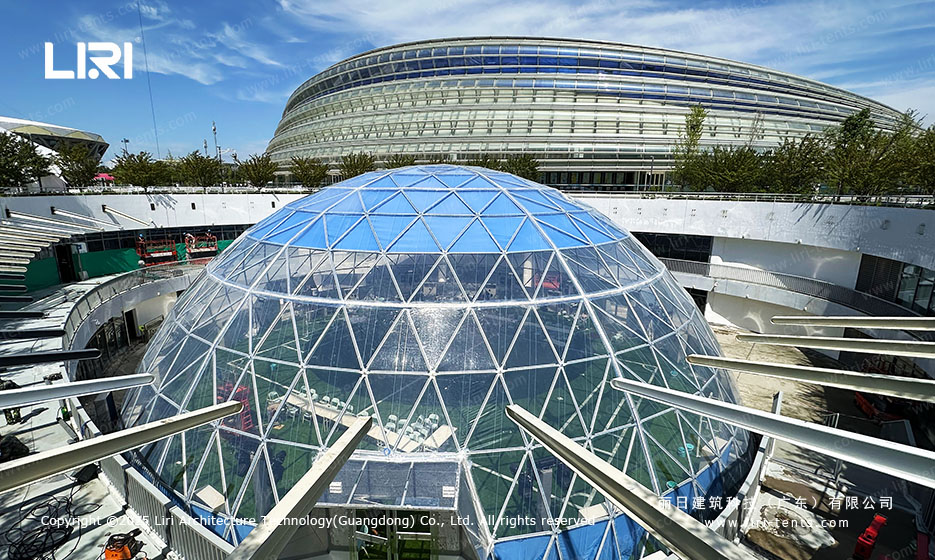

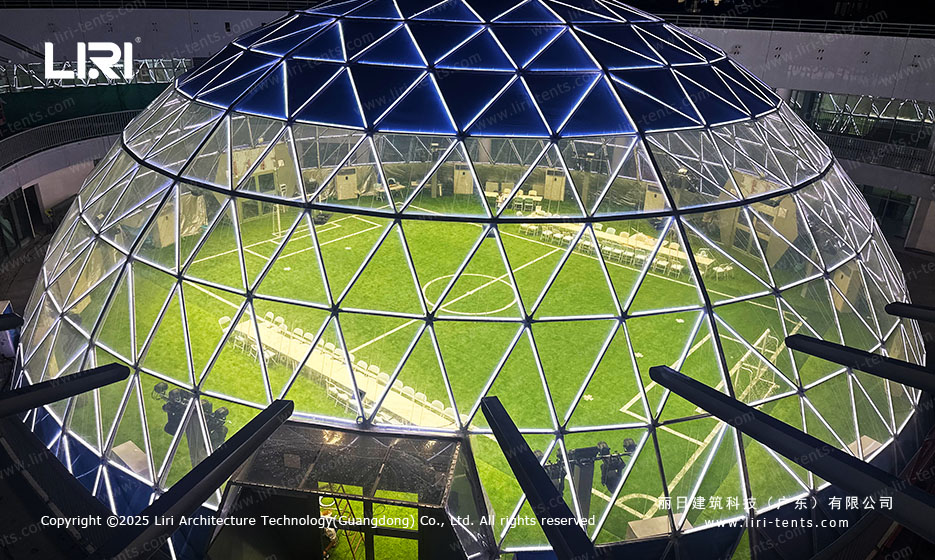

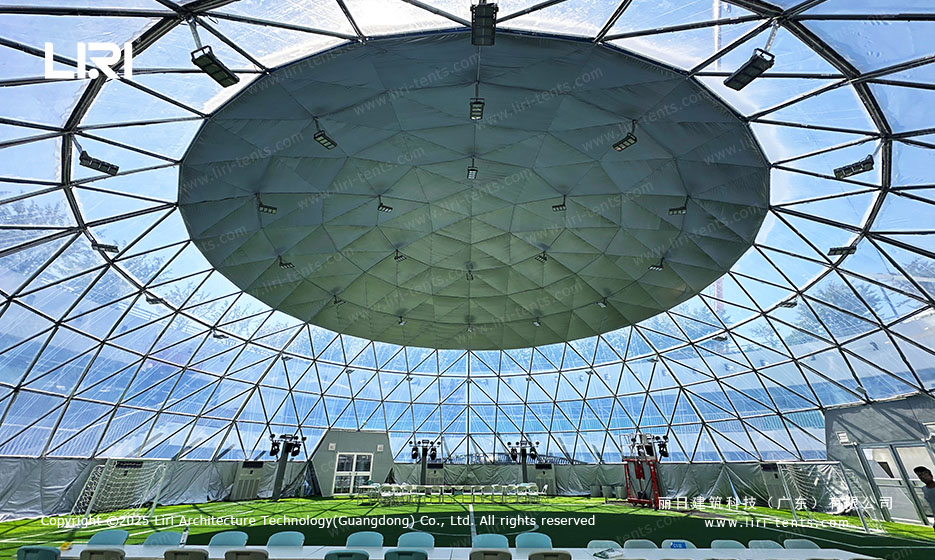

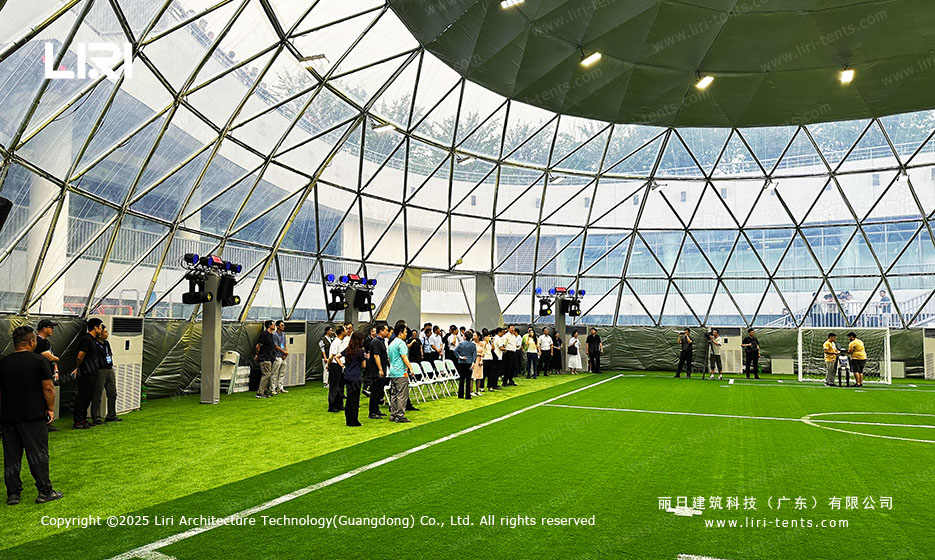

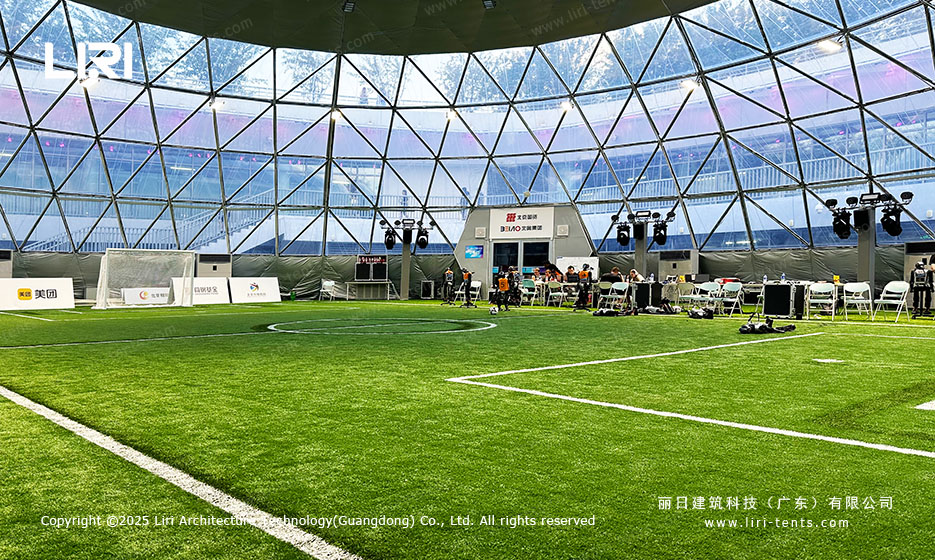

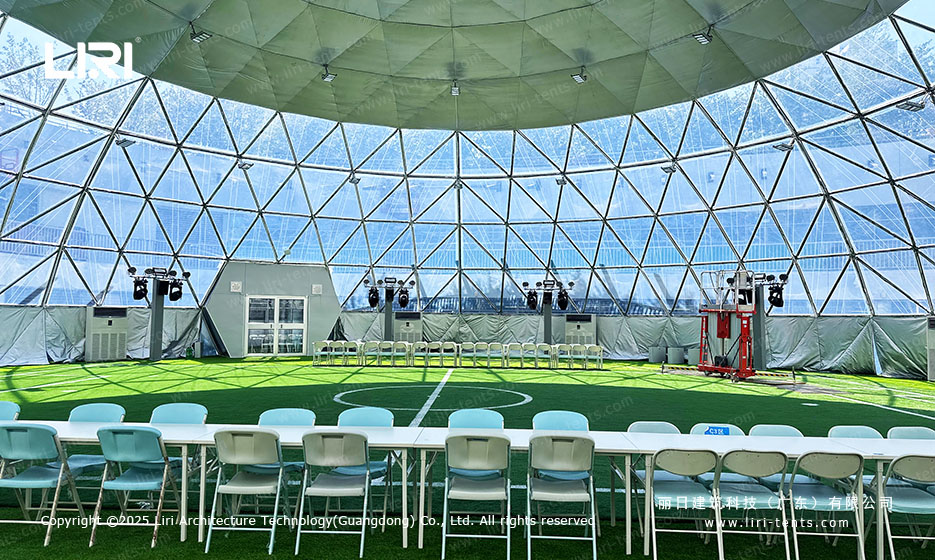

Liri has built three humanoid robot competition and training bases for The 2025 World Humanoid Robot Games. The core venue, “Panda Eye”, is particularly eye-catching. Nearly 35 meters in diameter, it is hemispherical, featuring a blue exterior and silver interior membrane structure. Its iconic “eyeball” shape exudes a sense of technology. When illuminated at night, it resembles a technological panda gazing into the future, a major attraction at the event venue. Its mesh galvanized steel tube frame and highly transparent ETFE membrane material meet the requirements of a semi-permanent structure while achieving ultra-high light transmittance, flooding the venue with natural light.

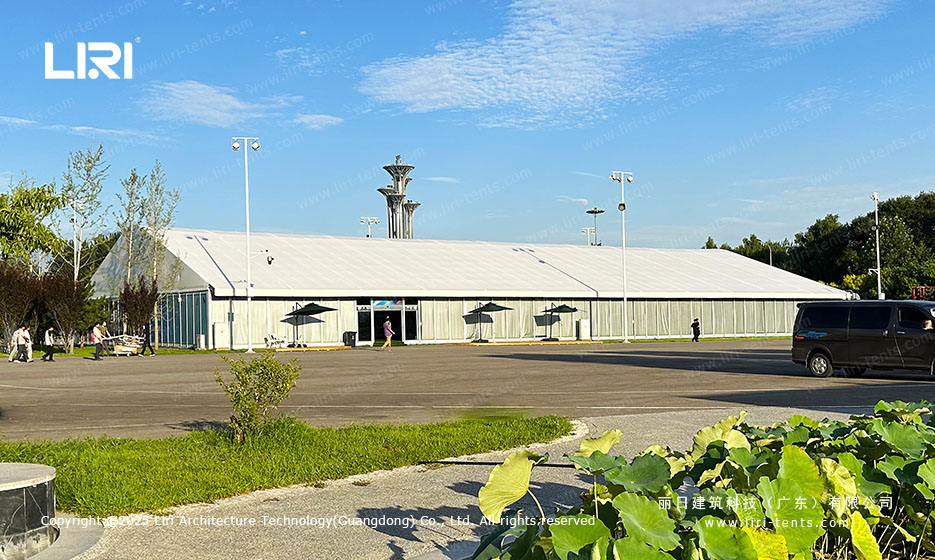

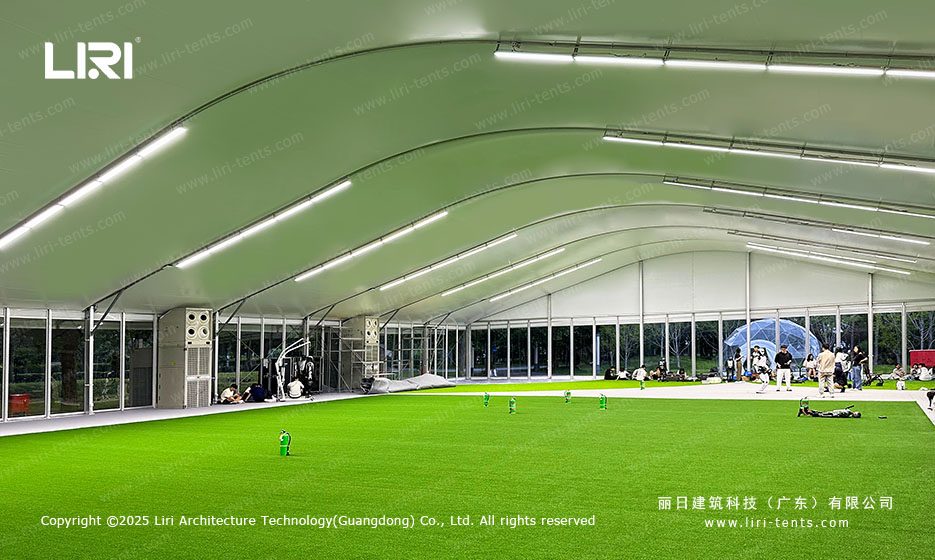

The other two competition and training bases also have their own characteristics. One is a 1,800-square-meter dome roof training hall and the other one is a 1,000-square-meter comprehensive venue. The column-free design makes the space open and flexible, and the training units can be flexibly divided according to the needs of different events, fully meeting the diverse training requirements. The venue uses transparent curtain walls to introduce natural light, which is energy-saving and environmentally friendly while providing a good visual experience. In terms of performance, they are also outstanding. The high-strength aluminum alloy frame can withstand the wind up to 120km/h, ensuring that the venue remains stable and safe in severe weather. The intelligent environmental control system can accurately control the temperature, humidity and air quality in the venue, so that it is always in the best condition, effectively protecting the storage and display of electronic equipment.

Liri not only provides a stable and professional competition and training environment for robots, but also redefines the standard of temporary buildings with the power of technology, sets a new benchmark for the prefabricated structure industry in the field of electronic equipment, and demonstrates the powerful strength of “Made in China” to the world.

القطرارتفاع السقفالمساحة الأرضيةالحجمتفاصيل الدعامات
3 أمتار2.3 م
7.1 متر مربع12.7 م³20 ملم
4 أمتار2.89 م12.6 م²28 مترًا مكعبًا20 ملم
5 أمتار2.93 م19.6 متر مربع41 مترًا مكعبًا20 ملم
6 أمتار3.52 م28.3 متر مربع70 مترًا مكعبًا20 ملم
7 أمتار4.1 م38.5 متر مربع110 متر مكعب26 ملم
8 أمتار4 أمتار50.2 متر مربع134 مترًا مكعبًا26 ملم
9 أمتار4.5 م63.6 متر مربع191 مترًا مكعبًا26 ملم
10 أمتار5 أمتار78.5 متر مربع262 مترًا مكعبًا26 ملم
11 متراً5.5 متر95 مترًا مربعًا348 متر مكعب26 ملم
12 مترًا6 أمتار113 مترًا مربعًا452 مترًا مكعبًا33 ملم
13 م5.82 م132.7 م²545 متر مكعب33 ملم
14 م6.27 م153.9 متر مربع685 متر مكعب33 ملم
15 مترًا
6.72 م176.6 متر مربع845 متر مكعب33 ملم
16 م7.16 م201 مترًا مربعًا1030 متر مكعب33 ملم
17 م8.5 متر226.9 متر مربع1285 متر مكعب33 ملم
18 مترًا9 أمتار254.3 متر مربع1525 متر مكعب33 ملم
19 م9.5 أمتار283.4 متر مربع1795 متر مكعب33 ملم
20 مترًا10 أمتار314 مترًا مربعًا2090 متر مكعب38 ملم
21 مترًا10.5 م346.2 متر مربع2420 متر مكعب38 ملم
22 م
11 متراً379.9 متر مربع2785 متر مكعب38 ملم
23 م11.5 م415.3 متر مربع3180 متر مكعب38 ملم
24 مترًا12 مترًا452.2 متر مربع3615 متر مكعب38 ملم
25 مترًا12.5 مترًا490.6 متر مربع4090 متر مكعب48 ملم
30 مترًا13 م706.5 م²5744 متر مكعب48 ملم
35 مترًا14 م961 مترًا مربعًا8170 متر مكعب48 ملم
40 متراً15 مترًا1256 مترًا مربعًا11191 متر مكعب51 ملم
45 م18 مترًا1589.6 متر مربع17367 متر مكعب48 ملم
50 مترًا20 مترًا1962.5 متر مربع
23823 متر مكعب48 ملم
55 مترًا22 م2374.6 متر مربع21710 متر مكعب48 ملم
60 مترًا25 مترًا2826.0 متر مربع43524 متر مكعب51 ملم
مقال مميز

دعامات الإطار: ألومنيوم مبثوق ومضغوط بقوة من النوع 6061/T6(15HW)

غطاء من القماش: نسيج بوليستر عالي الجودة مطلي بطبقتين من مادة PVC؛ مقاوم للماء وفقًا لمعيار 100%؛ مقاوم للهب وفقًا لمعايير DIN4102 B1 وM2 وCFM؛ مقاوم للأشعة فوق البنفسجية، ومقاوم للتمزق، وله قدرة على التنظيف الذاتي، إلخ

الموصل: فولاذ قوي مجلفن بالغمس الساخن

نطاق درجات الحرارة المسموح به: -30 درجة مئوية إلى +70 درجة مئوية

حمل الرياح: بحد أقصى 100 كم/ساعة

حمل الثلج: 75 كجم/م² (لا يمكن أن يثبت الثلج في حالة استخدام تصميم بسقف ذي ميل حاد)

سهل التجميع والتفكيك

لا يوجد عمود بالداخل، المساحة الداخلية المتاحة 100%
