Removable Stadium Structure Tent

Removable Sports Stadium Structures

نبذة عن المشروع

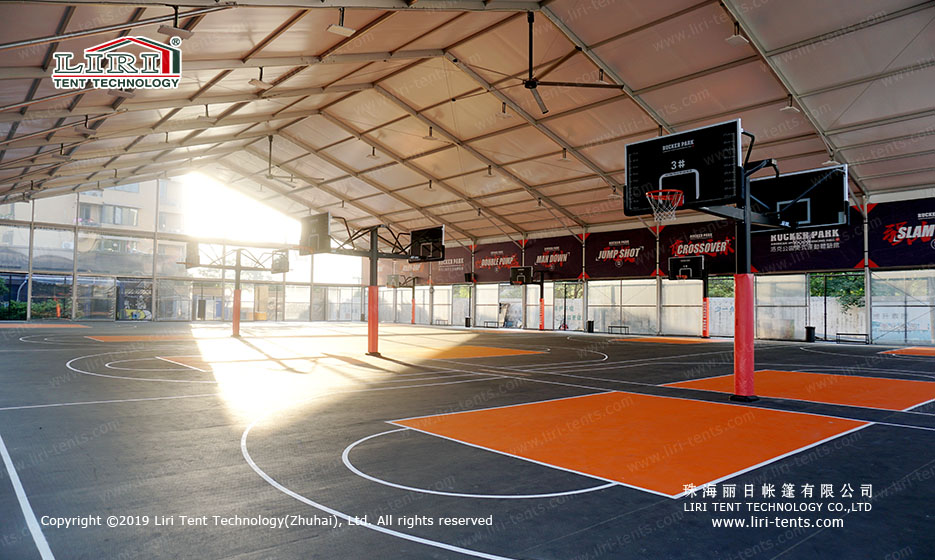

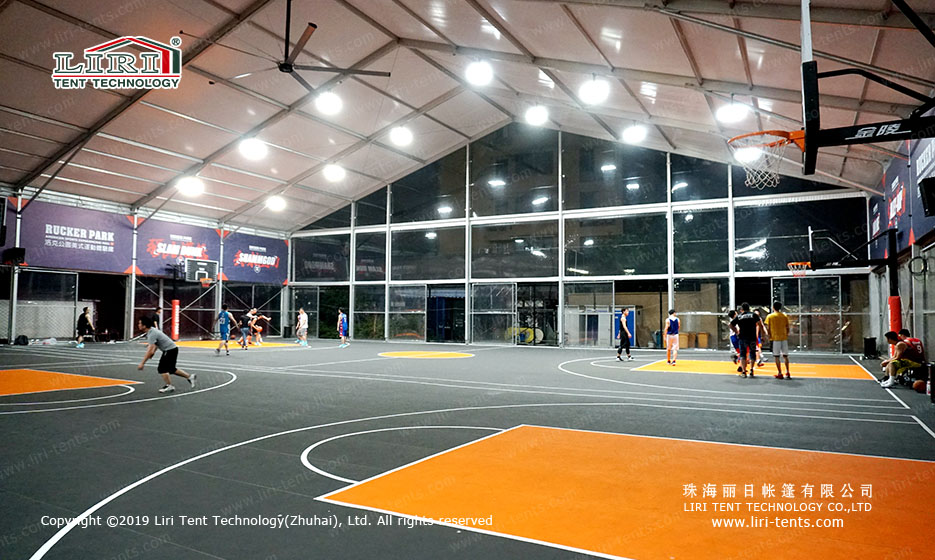

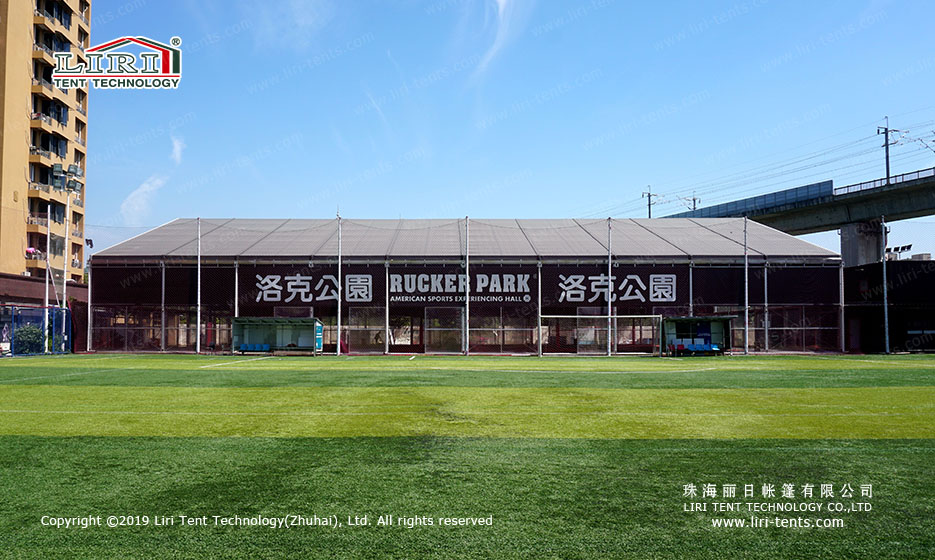

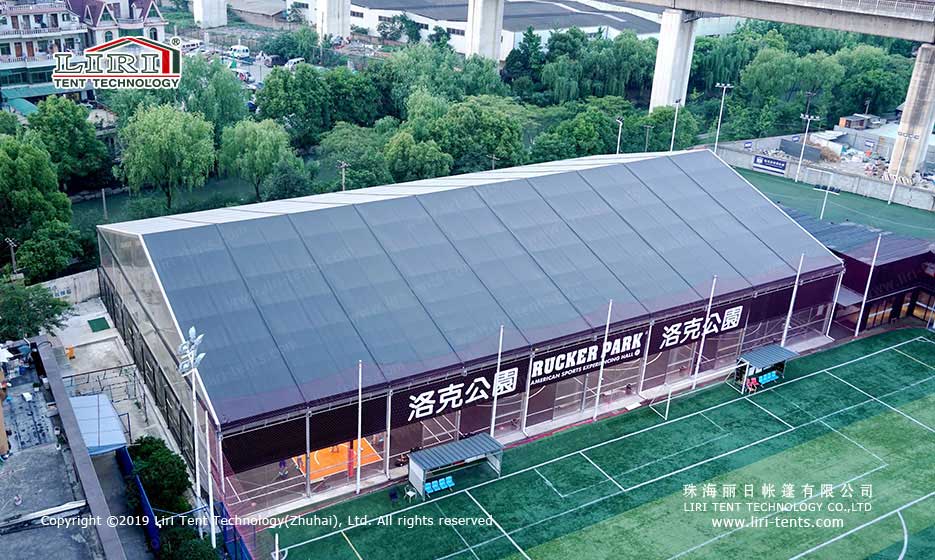

Compared with traditional architecture, Liri Tent offers the removable stadium structure tent which can be flexibly assembled and removed according to the usage requirements, also named as modeling sports tent. Its modular design helps quickly moving, increase or decrease the scale of the venue and can be used for rental business if the sports game time is not last long. Liri sports tents do not use reinforced concrete, we have no dust during construction. You can also set it directly on the original outdoor basketball courts, soccer fields, and other venues. Even no need to remodel the original files. It is consistent with the sustainable development concept.

At present, the stadiums in China are existing under embarrassing situations of in the lacking of quantity and long-term leaving unused. It cost too much time and money to build up all these concrete stadiums but often left it for a long time without usage. It makes these stadiums out of the real demand for the people.

Flexibly install and remove the removable stadium structure tent

It solves the current problems of building up a concrete stadium. It applies to basketball, soccer, tennis, swimming, skating, and many other sports. You can customize it according to the actual size and requirements of the venue.

Liri sports tent are sun-proof, wind-resistant, rain-proof, rust-proof, fire retardant and so on. It can offer much better protection for the athletes than the open sports fields. Also, it can be installed on the dedicated floor, ventilation window, ventilation pipe, lighting system and many other facilities to create a full-featured mobile professional sports fields.

Sports Event Tent Series Specifications
عرض الامتدادارتفاع الحافةارتفاع الحافةمسافة الخليجالملف الشخصي الرئيسي
30 مترًا4 أمتار8.9 م5 أمتار350x120x5mm (4 - channel)
40 متراً4 أمتار10.5 م5 أمتار350x120x5mm (4 - channel)
45m4 أمتار11.38m5 أمتار350x120x5mm (4 - channel)
50 مترًا4 أمتار12 مترًا5 أمتار350x120x5mm (4 - channel)
60 مترًا4 أمتار13.6m5 أمتار350x120x5mm (4 - channel)
مقال مميز

دعامات الهيكل: ألومنيوم مبثوق ومضغوط بقوة من النوع 6061/T6(15HW).

غطاء من القماش: نسيج بوليستر عالي الجودة مطلي بطبقتين من مادة PVC؛ مقاوم للماء وفقًا لمعيار 100%؛ مقاوم للاشتعال وفقًا لمعايير DIN4102 B1 و M2 و CFM؛ مقاوم للأشعة فوق البنفسجية، ومقاوم للتمزق، ويتمتع بقدرة على التنظيف الذاتي، إلخ.

الموصل: فولاذ قوي مجلفن بالغمس الساخن

نطاق درجات الحرارة المسموح به: -30 درجة مئوية إلى +70 درجة مئوية

حمل الرياح: بحد أقصى 100 كم/ساعة

حمل الثلج: 75 كجم/م² (لا يمكن أن يثبت الثلج في حالة استخدام تصميم بسقف ذي ميل حاد)

سهل التجميع والتفكيك

لا توجد عمود في الداخل، المساحة الداخلية المتاحة تبلغ 100%.
