تأجير خيام للفعاليات الرياضية في الدورة السادسة عشرة للألعاب الآسيوية

Sporting Event Tent Structures

نبذة عن المشروع

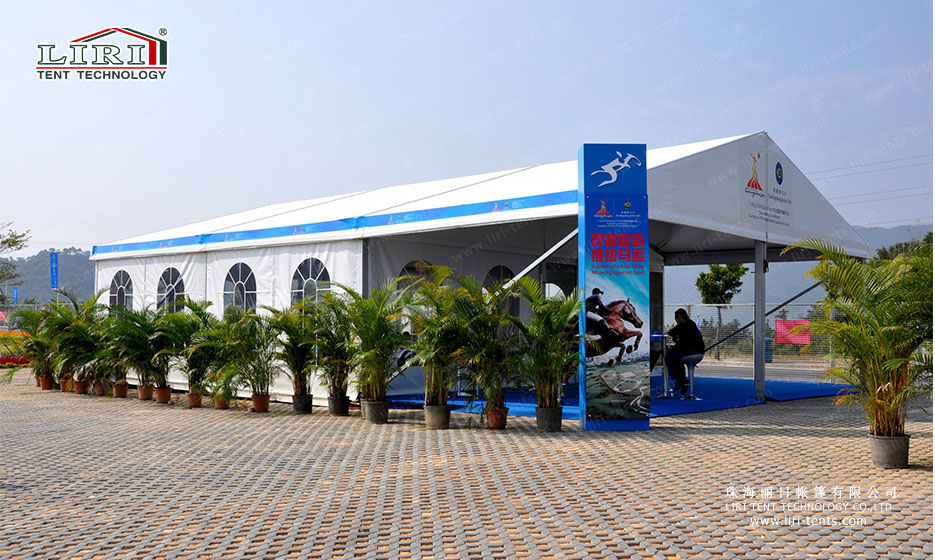

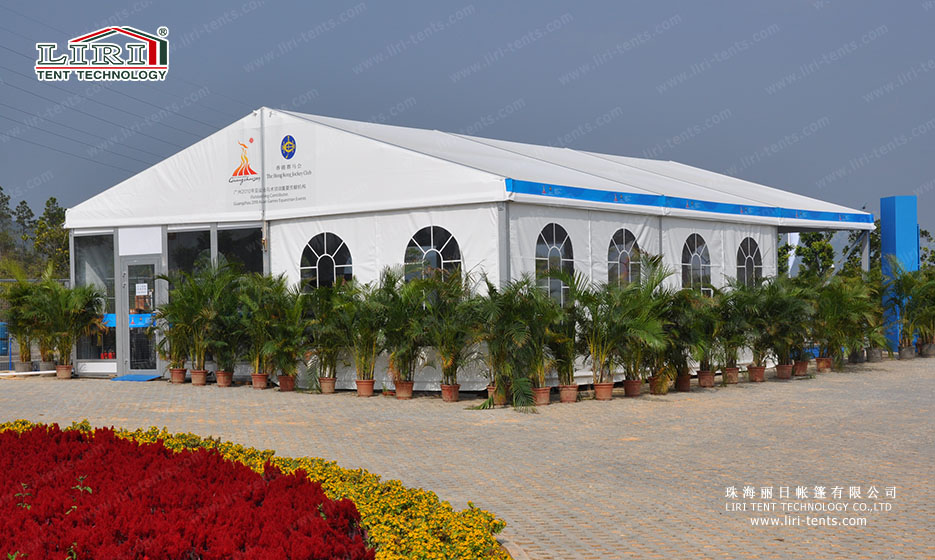

On November 27, 2010, Harmonious Asia Great Vessel ended a short and wonderful journey of the Guangzhou Asian Games after 16 days. In these 16 days, the happiness of triumph and sadness of failure, all these psychic reactions turned to passion on site. Turn over this page; the Asian Games became a beautiful memory of Guangzhou. Turn over this page; Liri Tent has inscribed in the history of the Asian game. Thrilling Games, Excellent Liri. After 150 days and nights of hard-working in the Asian Games, all Liri staff accomplished the supply and security of the Asian Games sporting event tent.

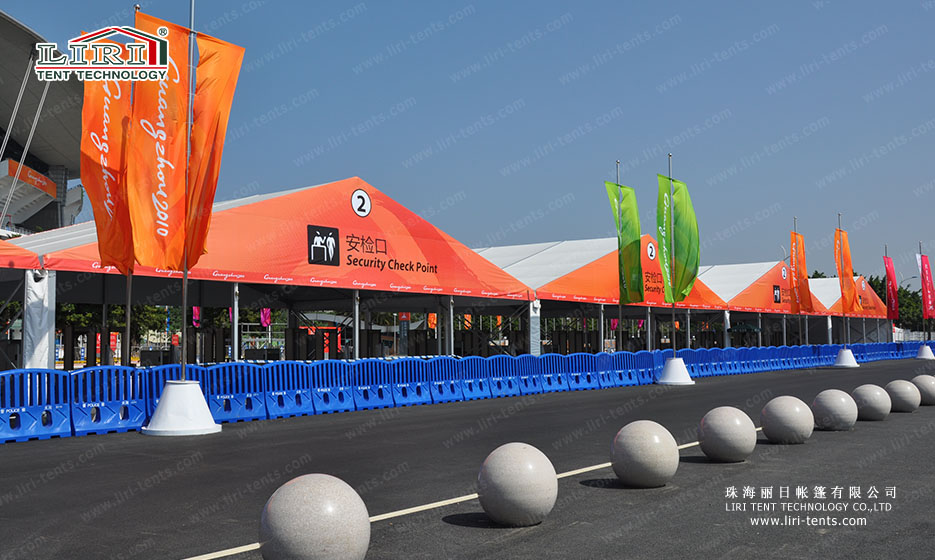

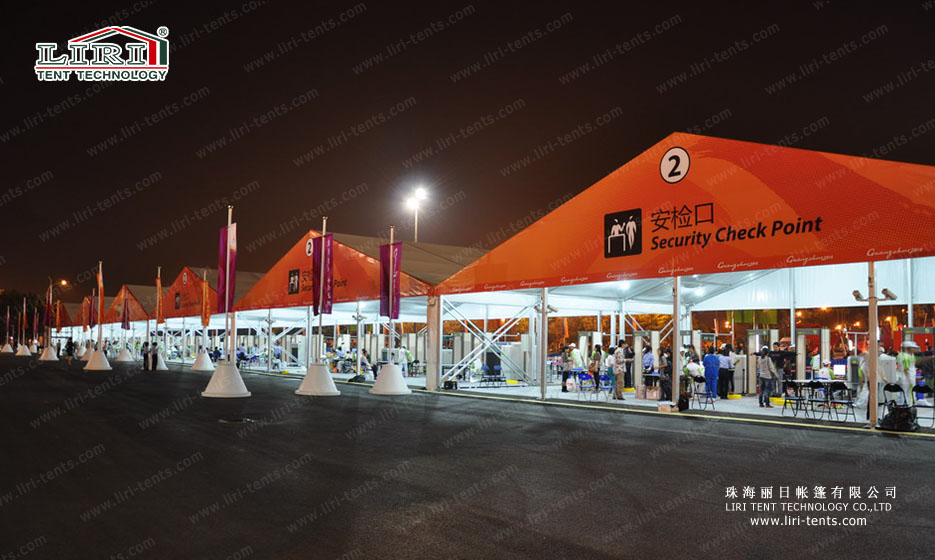

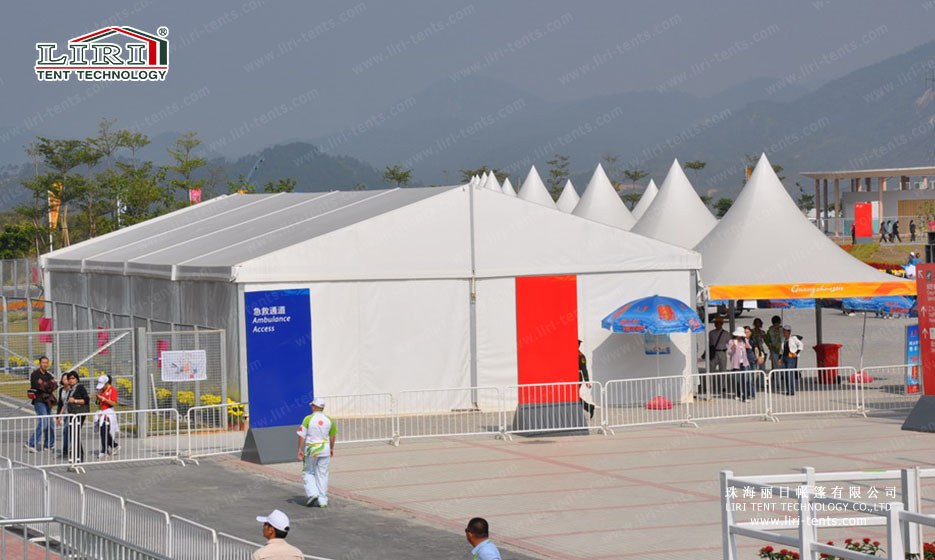

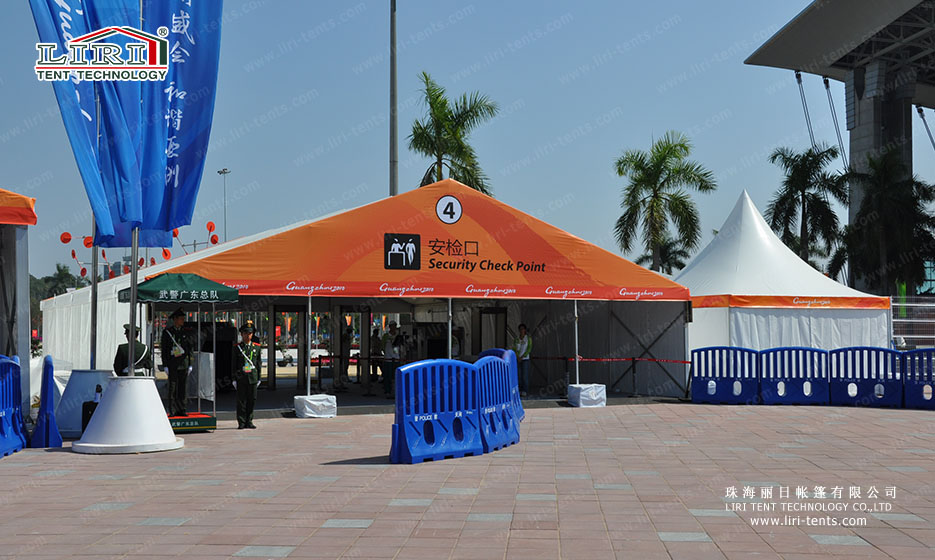

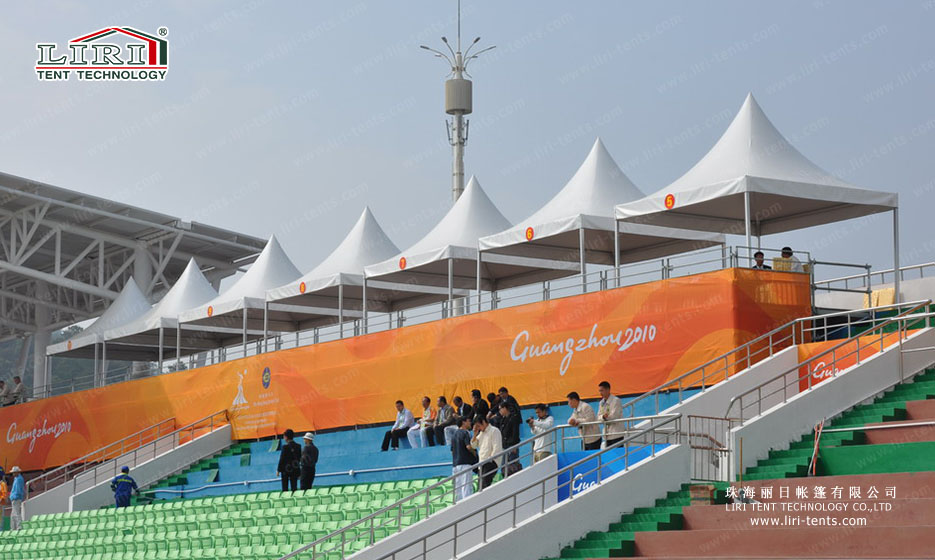

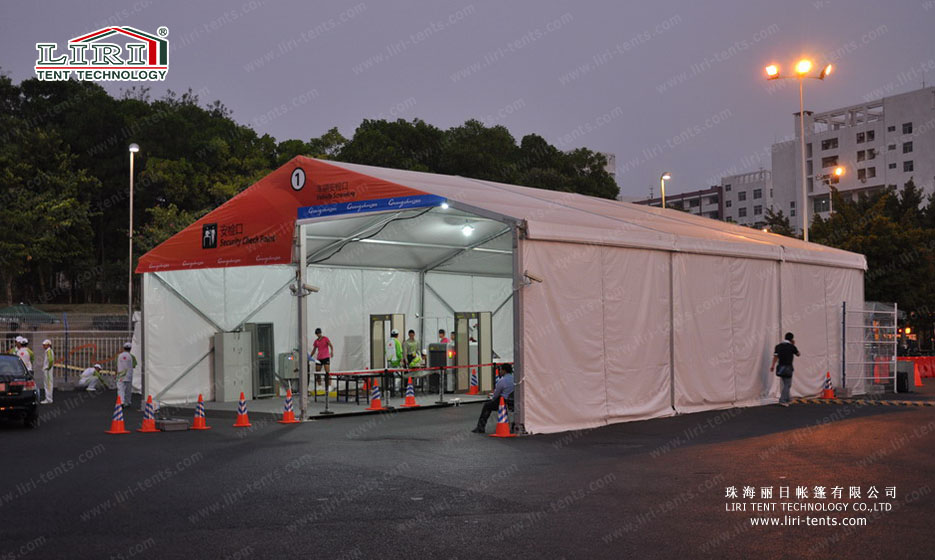

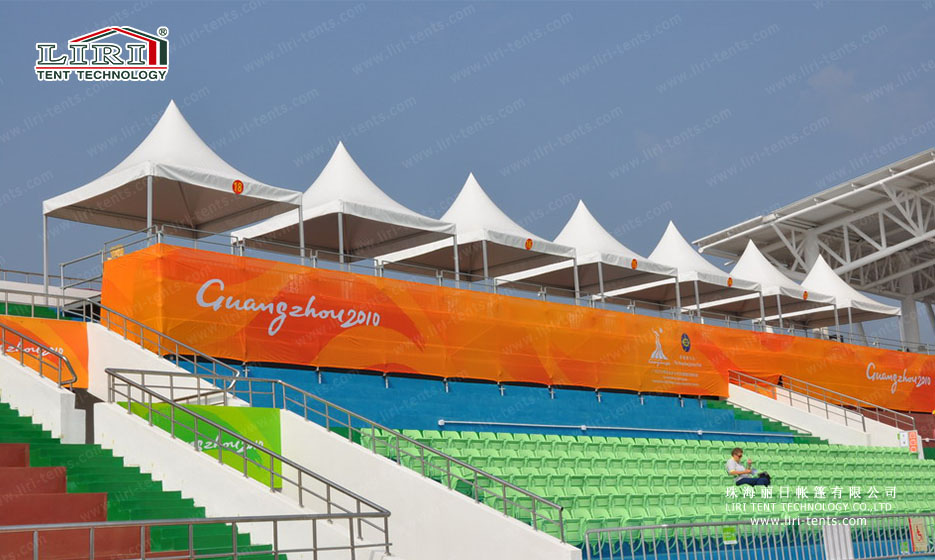

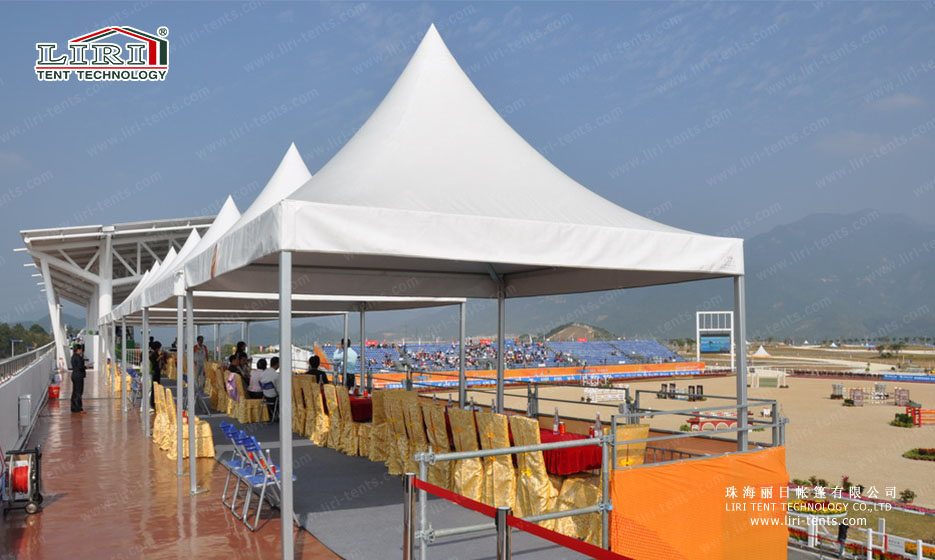

Whatever for security checking tents or VIP stands; whatever for athletes and referees lounges or volunteer services centers; franchised points of sales or information services centers, more than 50,000 square meters of Liri sporting event tent remain the best posture and standing erectly in the Asian arena all the time.

Liri Tent, known as the industry leader and the forerunner of national brands, leaves your beautiful figure and steady pace in Guangzhou Asian Games. From then on, you become more mature and more experienced to undertake large-scale activities. Your name has been enshrined in the annals of the 2010 Guangzhou Asian Games. Let us together with Asian Games to create a better future.

مواصفات سلسلة خيام الفعاليات الرياضية
عرض الامتدادارتفاع الحافةارتفاع الحافةمسافة الخليجالملف الشخصي الرئيسي
10 أمتار3.88 م5.53 م5 أمتار204 × 110 × 4 مم (4 قنوات)
12 مترًا3.88 م5.83 م5 أمتار204 × 110 × 4 مم (4 قنوات)
15 مترًا3.88 م6.3 م5 أمتار204 × 110 × 4 مم (4 قنوات)
20 مترًا3.88 م7.1 م5 أمتار204 × 110 × 4 مم (4 قنوات)
21 مترًا3.88 م7.25 م5 أمتار204 × 110 × 4 مم (4 قنوات)
25 مترًا3.88 م7.88 م5 أمتار204 × 110 × 4 مم (4 قنوات)
مقال مميز

دعامات الإطار: ألومنيوم مبثوق ومضغوط بقوة من النوع 6061/T6(15HW)

غطاء من القماش: نسيج بوليستر عالي الجودة مطلي بطبقتين من مادة PVC؛ مقاوم للماء وفقًا للمواصفة 100%؛ مقاوم للاشتعال وفقًا لمعايير DIN4102 B1 وM2 وCFM؛ مقاوم للأشعة فوق البنفسجية، ومقاوم للتمزق، وذو قدرة على التنظيف الذاتي، وما إلى ذلك

الموصل: فولاذ قوي مجلفن بالغمس الساخن

نطاق درجات الحرارة المسموح به: -30 درجة مئوية إلى +70 درجة مئوية

حمل الرياح: بحد أقصى 100 كم/ساعة

حمل الثلج: 75 كجم/م² (لا يمكن أن يثبت الثلج في حالة استخدام تصميم بسقف ذي ميل حاد)

سهل التجميع والتفكيك

لا يوجد عمود بالداخل، المساحة الداخلية المتاحة 100%
