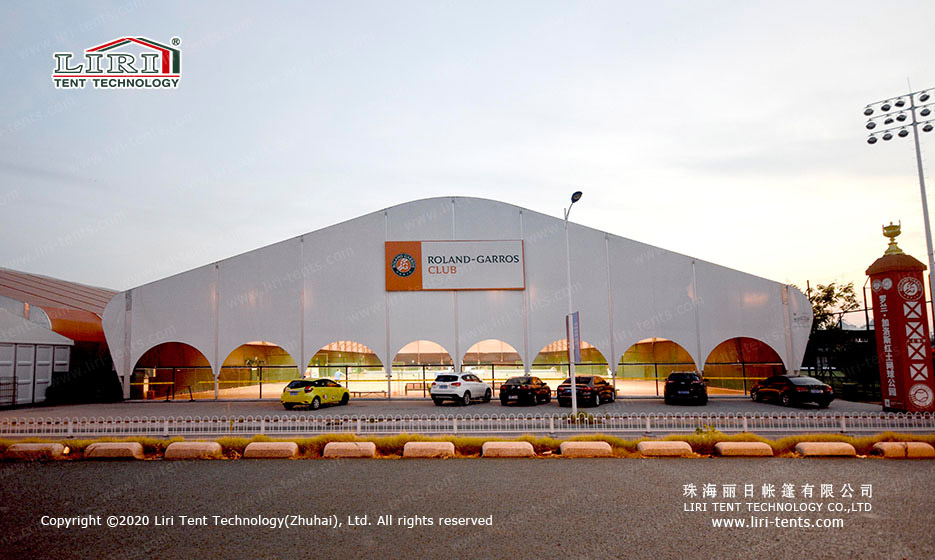

Tennis Court Cover Roof Structures

نبذة عن المشروع

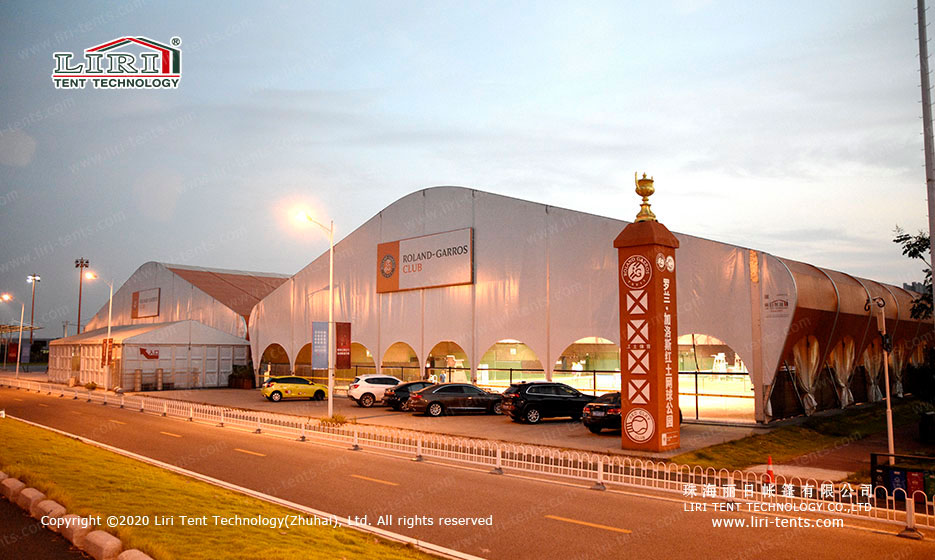

Tennis, as elegant sports, is very popular all over the world, called the world’s second-largest ball games. The Grand Slam Tennis is the world’s most important annual tennis tournament. Liri Tent offered various series tennis court cover roof tents for many famous sports competitions in China, including China Open, WUHAN Open, and WTA Elite Trophy.

Tennis court cover roof can solve indoor tennis court problems

With the tennis spread out in our country, our exercising passion is higher and higher. Most of the tennis courts are located in middle and large cities, very rare outdoor courts, most importantly is the fixed court that requires large labor, source and financial support, but the temporary and movable tennis court cover roof well solve these issues and meet different requirement.

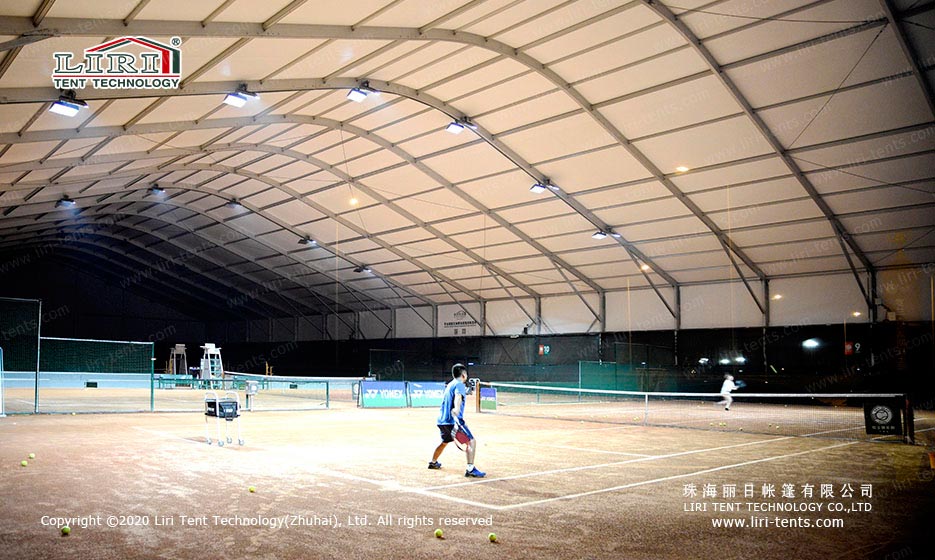

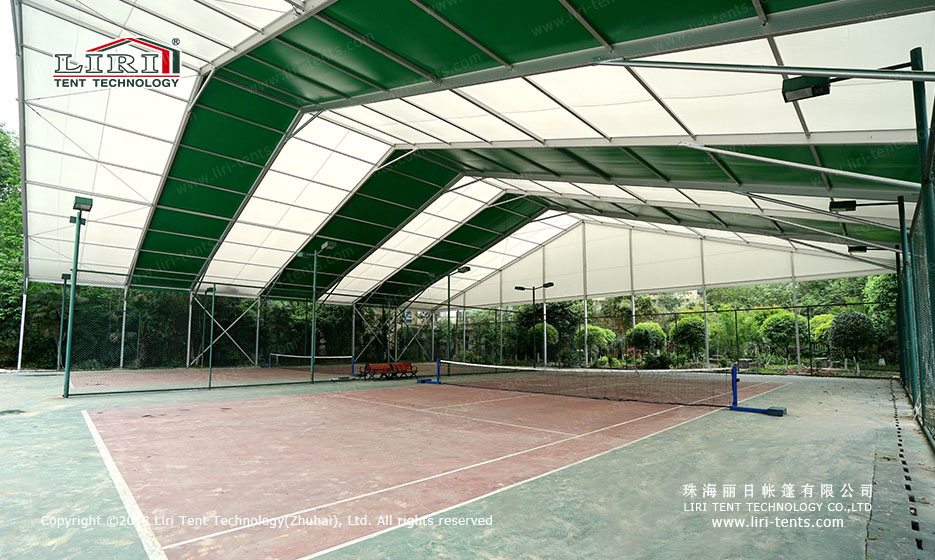

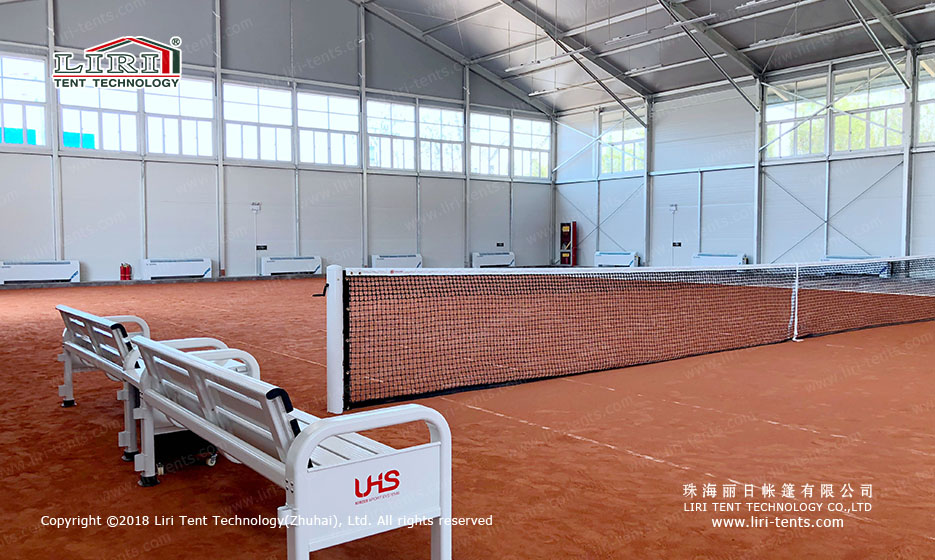

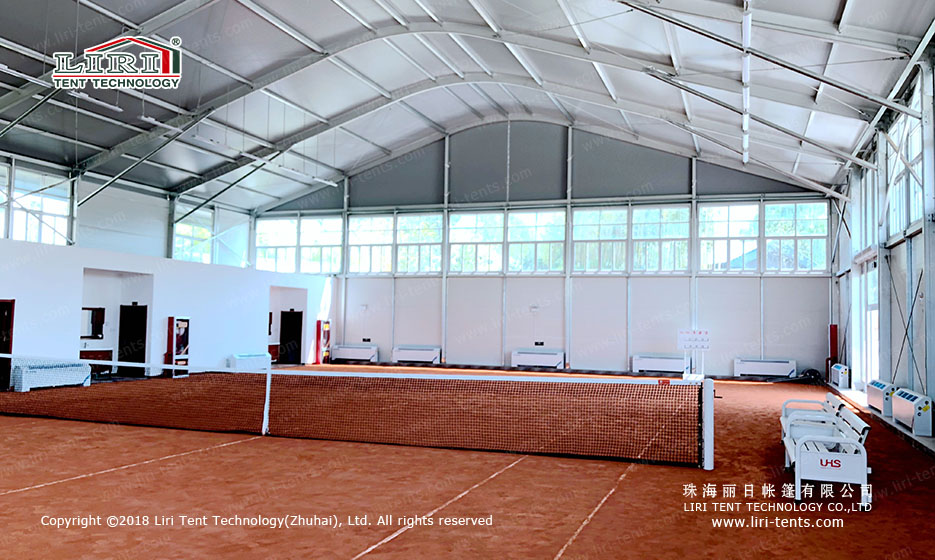

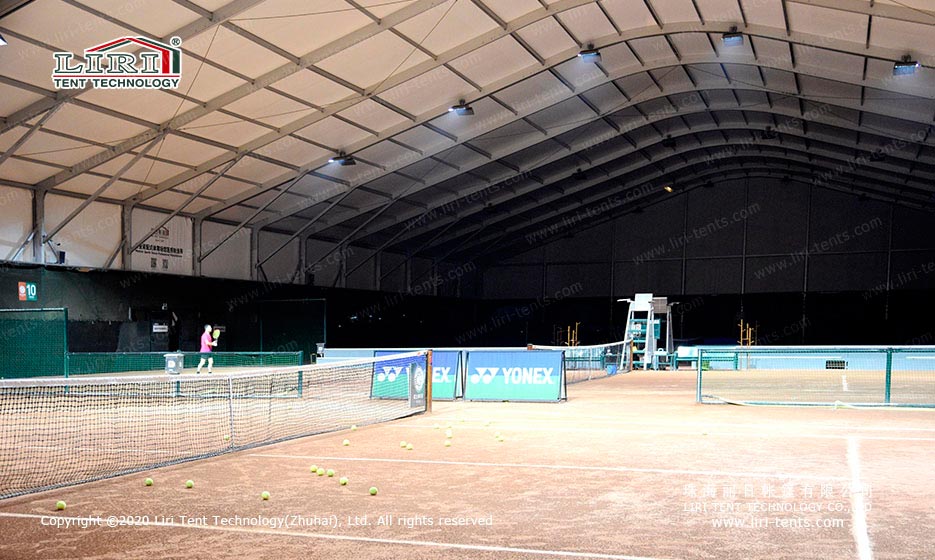

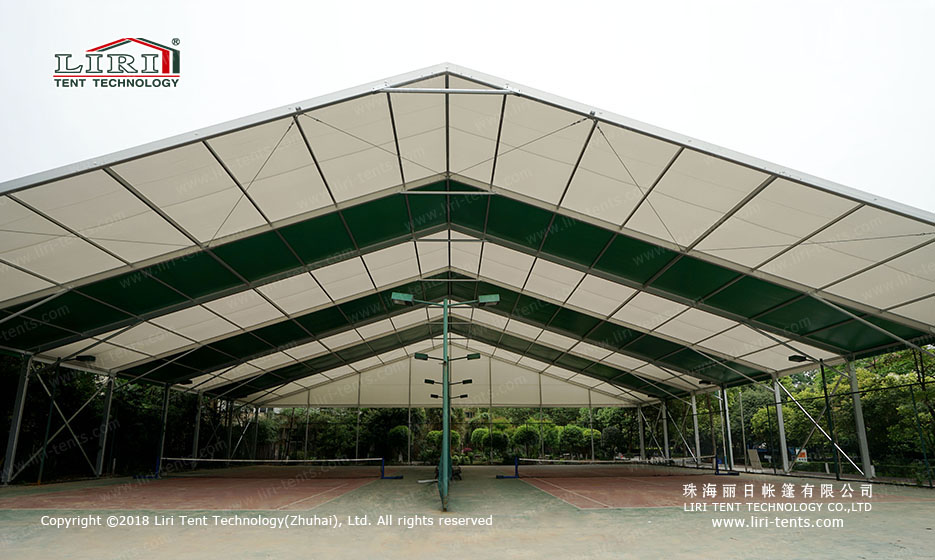

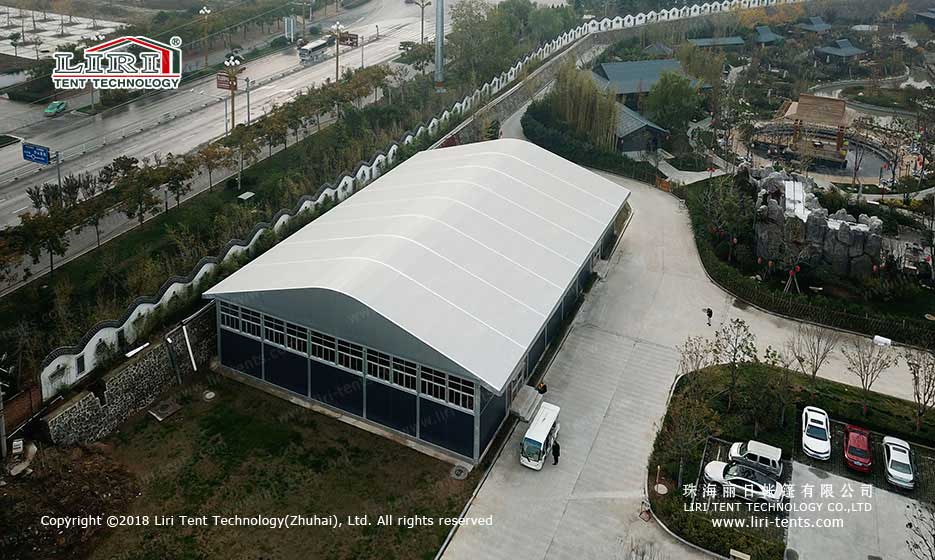

Liri movable indoor tennis court cover roof uses the high pressed aluminum frame. It has the characteristics of economical, flexible, safe and environmental protection. Tent construction time is short, easy to set up and disassemble, also recyclable. Our PVC- coated polyester fabric, is waterproof, flame retardant, UV resistant, wind-resistant, which can be used in most weather and treated against deterioration due to rot and mildew, make sure every sports event in the sports tent for can be held smoothly in any season.

Liri supply various accessories, like the lighting, air conditioning and other items for sports tent for tennis court, customized service consult for different requirement of sports tent for the tennis court is welcome.

المزيد من تطبيقات Liri Tents في مستلزمات التنس
مواصفات سلسلة خيام الفعاليات الرياضية
عرض الامتدادارتفاع الحافةارتفاع الحافةمسافة الخليجالملف الشخصي الرئيسي
10 أمتار3.88 م6.9 م5 أمتار204 × 120 × 4 مم (4 قنوات)
12 مترًا3.87 م6.93 م5 أمتار204 × 120 × 4 مم (4 قنوات)
15 مترًا3.87 م8 أمتار5 أمتار204 × 120 × 4 مم (4 قنوات)
20 مترًا3.89 م8.98 م5 أمتار256 × 121 × 5 مم (4 قنوات)
25 مترًا3.89 م10 أمتار5 أمتار256 × 121 × 5 مم (4 قنوات)
30 مترًا3.89 م11.2 م5 أمتار300 × 120 × 5 مم (4 قنوات)
40 متراً3.89 م13.5 مترًا5 أمتار300 × 120 × 5 مم (4 قنوات)
مقال مميز

دعامات الهيكل: ألومنيوم مبثوق ومضغوط بقوة من النوع 6061/T6(15HW).

غطاء من القماش: نسيج بوليستر عالي الجودة مطلي بطبقتين من مادة PVC؛ مقاوم للماء وفقًا لمعيار 100%؛ مقاوم للاشتعال وفقًا لمعايير DIN4102 B1 و M2 و CFM؛ مقاوم للأشعة فوق البنفسجية، ومقاوم للتمزق، ويتمتع بقدرة على التنظيف الذاتي، إلخ.

الموصل: فولاذ قوي مجلفن بالغمس الساخن

نطاق درجات الحرارة المسموح به: -30 درجة مئوية إلى +70 درجة مئوية

حمل الرياح: بحد أقصى 100 كم/ساعة

حمل الثلج: 75 كجم/م² (لا يمكن أن يثبت الثلج في حالة استخدام تصميم بسقف ذي ميل حاد)

سهل التجميع والتفكيك

لا توجد عمود في الداخل، المساحة الداخلية المتاحة تبلغ 100%.

المزيد من هذا النوع
تعليقات 4
  1. Hello,
    I am searching for hall that can cover 1 or 2 tennis courts. I need tent 18m x 36m usable in winter time, and the roof of it should hold the weight of snow. What is the price for the hall? Could be the roof and walls warm insulated?

  2. I am searching for a tent which can cover 1 tennis court. 18 x35 m, usable in winter
    time. Its roof have to resist at the weight of snow. Also i need to know that the roof is insulated. Which is the price for such a tent? Thank you!

  3. Bernardo Ferreira 2024-08-06 عند 07:43 رد

    Looking to get a quote for a tent to cover 8 Padel Courts and 4 Pickleball Courts in Memphis, TN.
